Paper Slitting Machine
YG advanced paper slitting machine is suitable for thermal paper, kraft paper, corrugated paper, jumbo roll, 40g/㎡-500g/㎡ no carbon paper, film paper, coated paper, paper plastic composite material etc.It combines PLC touch screen control with vector frequency conversion drive for ultra-smooth operation. It features automatic taper tension and photoelectric correction to ensure precise, high-quality slitting and winding, even with irregular materials. The machine enhances efficiency with automated shaftless loading, pneumatic rewinding, and automatic discharge, while incorporating waste removal and diagnostic alarms for seamless production.

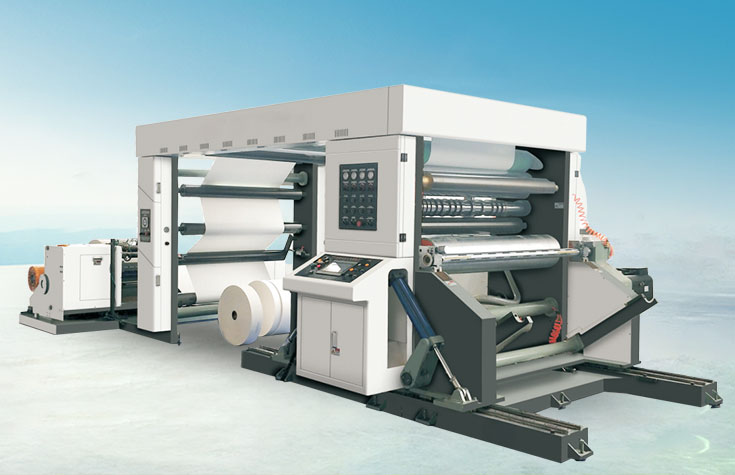

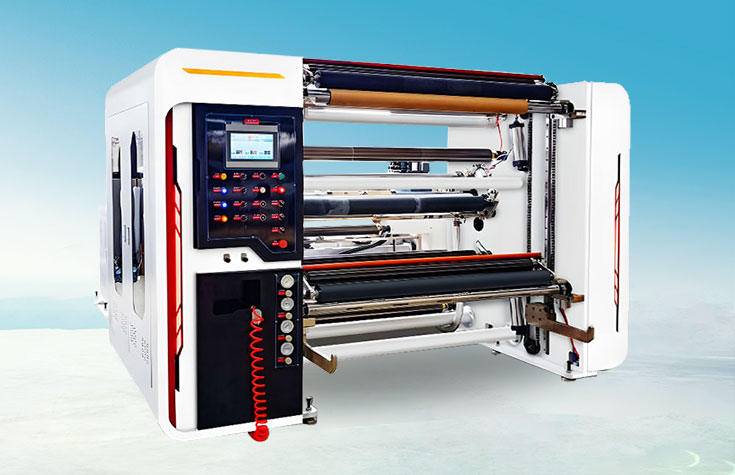

Bare Frame Full Auto High Speed Slitting & Rewinding Machine
- Auto Photoelectric Correction
- Pneumatic Shaft Rewinding
- Auto Eject & Waste Removal
- Suitable For Various Materials
C Model PLC Control High Speed Slitting & Rewinding Machine
- Laser Core Positioning
- Auto Tension & Error Correction
- Razor/Groove/Circle Cutting Options
- Friction Air Shaft Rewinding

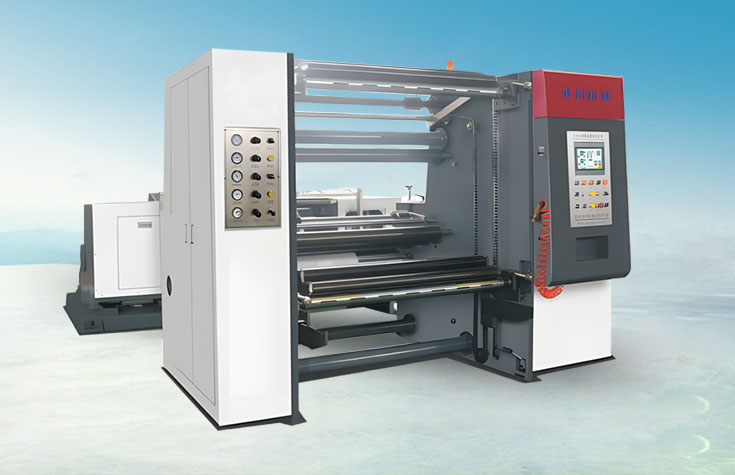

A Model Computer High-speed Slitting Machine
- Auto Taper Tension
- Central Surface Reeling
- Photoelectric Error Correction
- Pneumatic/Hydraulic Shaftless Loading
This machine is used for slitting and rewinding various large rolling materials such as paper, (kraft paper, cellophane paper, bill paper), double-face adhesive tape, PVC, plastic material, etc.
| Model | KFQ-1300 | KFQ-1600 | KFQ-2000 |
| Max. Width of unwinding | 1300mm | 1600mm | 2000mm |
| Max. Diameter of unwinding | φ1600mm | φ1600mm | φ2000mm |
| Min. Width of slitting | 50mm(up to materials) | 50mm(up to materials) | 50mm(up to materials) |
| Max.Diameter ofrewinding | Ф1500mm | p1500mm | p1500mm |
| Speed | 10-500m/min | 10-500m/min | 10-500m/min |
| Total power | 48kw | 59kw | 70kw |
| Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| Weight | 12000kg | 14000kg | 16000kg |
| Overall dimension(LxWxH) | 7500x3500x2400(mm) | 7500x3700x2400(mm) | 7500x3800x2400(mm) |
This machine is used for slitting and rewinding various large rolling material in thickness 20g/m2~300g/m2 such as paper, paper sticker, film, PVC, opp, bopp, PET etc.
| Model | GSFQ- 1100C | GSFQ- 1300C | GSFQ- 1600C |
| Max width of unwinding | 1100mm | 1300mm | 1600mm |
| Max Diameter of unwinding | φ800-1200mm | φ800-1200mm | φ800-1200mm |
| Min width of slitting | 30mm | 30mm | 30mm |
| Max Diameter of rewinding | φ700mm | φ700mm | φ700mm |
| Max Speed | 600m/min | 600m/min | 600m/min |
| Total Power | 22kw | 22kw | 22kw |
| Weight | 4000kg | 4200kg | 4400kg |
| Overal dimension(LxWxH) | 4500x2700x2100(mm) | 4500x2900x2100(mm) | 4500x3200x2100(mm |
This machine is used for slitting and rewinding various large rolling materials such as paper, (50g/m2~300g/m2)Kraft paper, coated paper, aluminum foil, PVC, plastic material, etc.
| Model | WZFQ- 1100A | WZFQ- 1300A | WZFQ- 1600A |
| Max. Width of unwinding | 1100mm | 1300mm | 1600mm |
| Max. Diameter of unwinding | φ1400/1600mm | φ1400/1600mm | φ1400/1600mm |
| Min. Width of slitting | 50mm | 50mm | 50mm |
| Max. Diameter of rewinding | φ1000/1200mm | φ1000/1200mm | φ1000/1200mm |
| Speed | 10-450m/min | 10-450m/min | 10-450m/min |
| Total power | 22kw | 22kw | 22kw |
| Power supply | 380V/50hz | 380V/50hz | 380V/50hz |
| Weight | 5600kg | 6000kg | 6400kg |
| Overall dimension (LxWxH) | 4200x3200x1950(mm) | 4200x3400x1950(mm) | 4200x3700x1950(mm) |
Product Application Areas

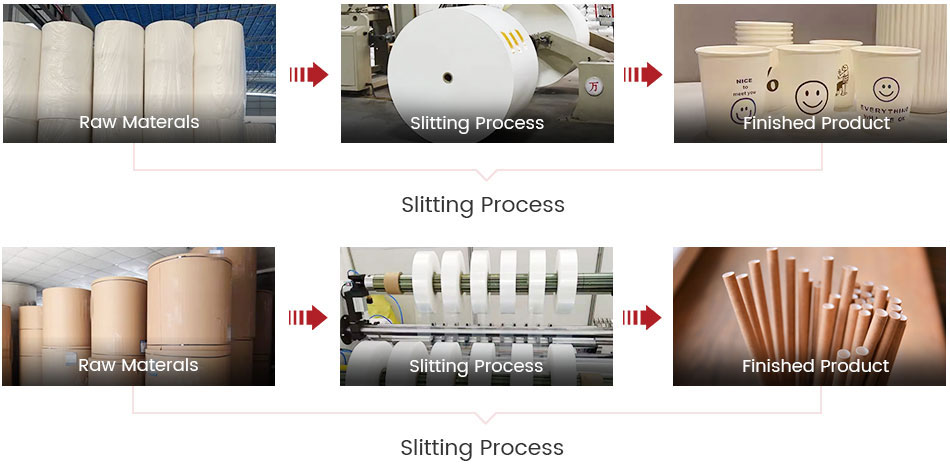

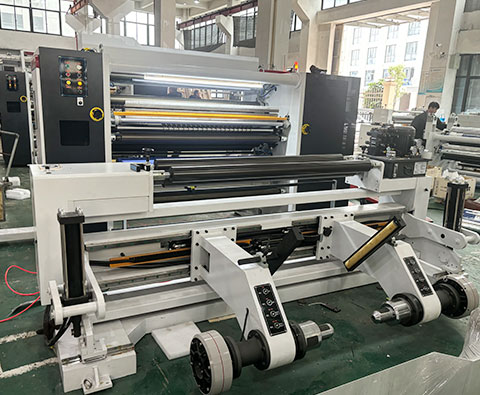

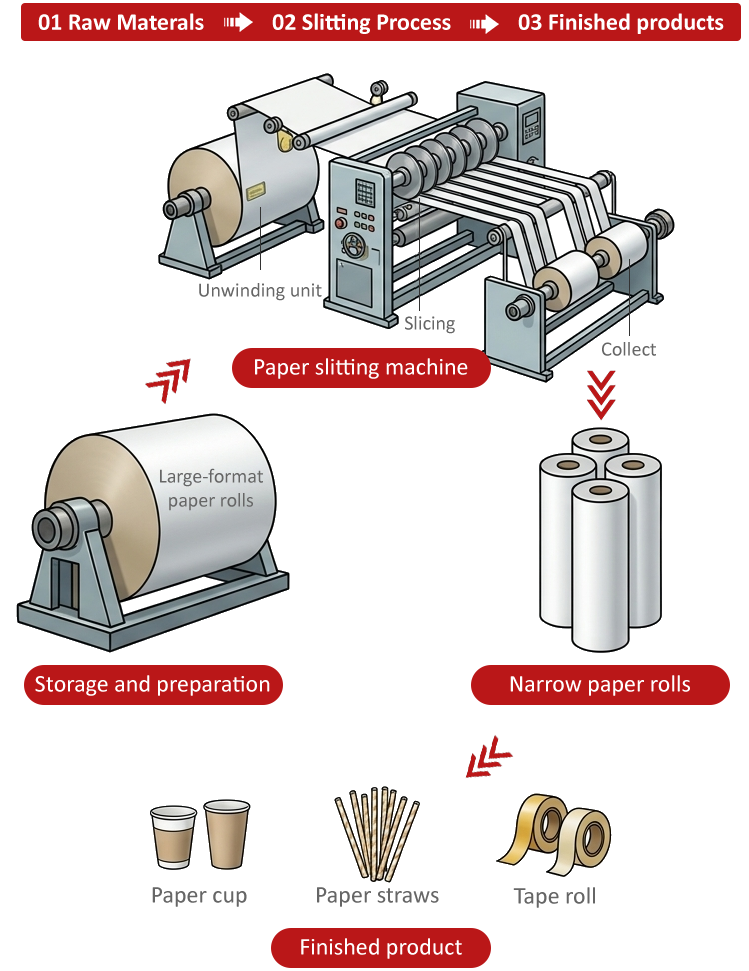

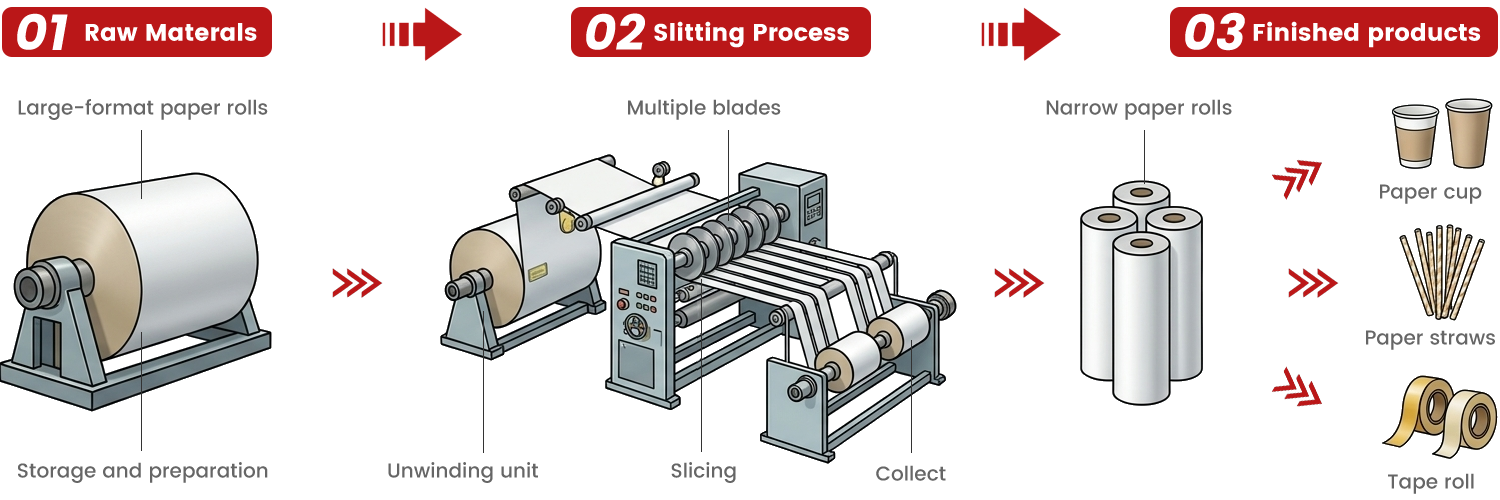

Processing Steps

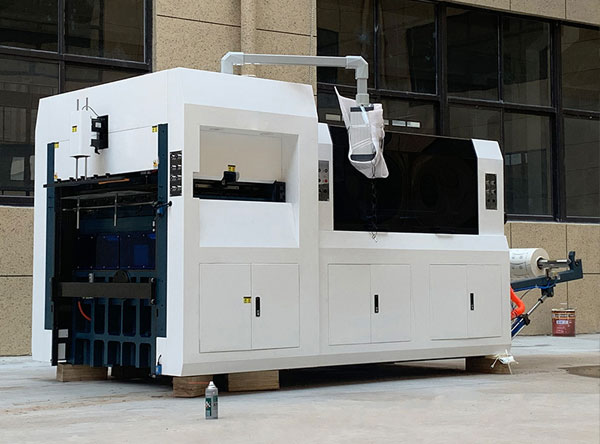

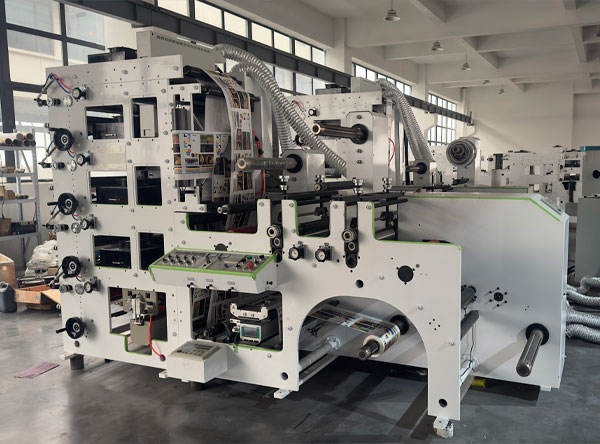

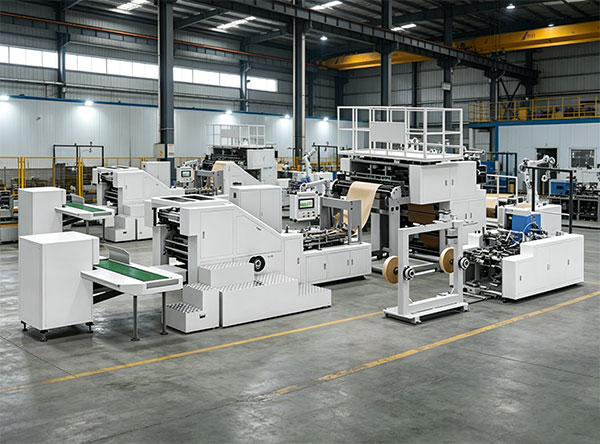

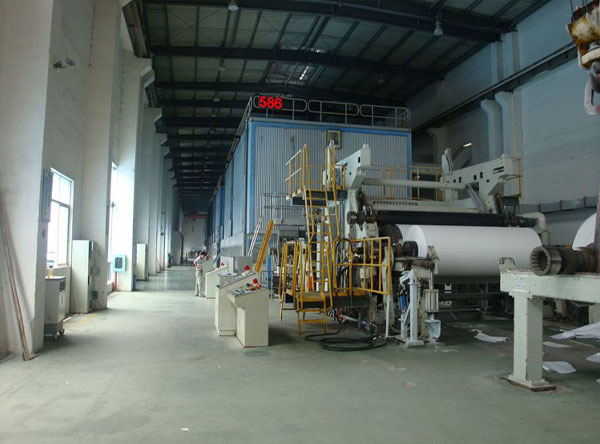

Customer Proof · Global Cases
Why Choose YG Paper Slitting Machine?
Customized Precision Configurations
Tailor cutting width, blade specifications, and tension control systems to your specific material types and production requirements.
Global Technical Support Network
Expert installation guidance, comprehensive operator training programs, and 24/7 emergency maintenance services to minimize downtime.
Industry-Trusted Performance
Trusted by over 300 packaging and printing companies across 50 countries for high-speed accuracy and durability.
Certified Safety & Compliance
CE certified designs with integrated safety guards, emergency stop systems, and real-time monitoring alerts.
Complete Your Solution

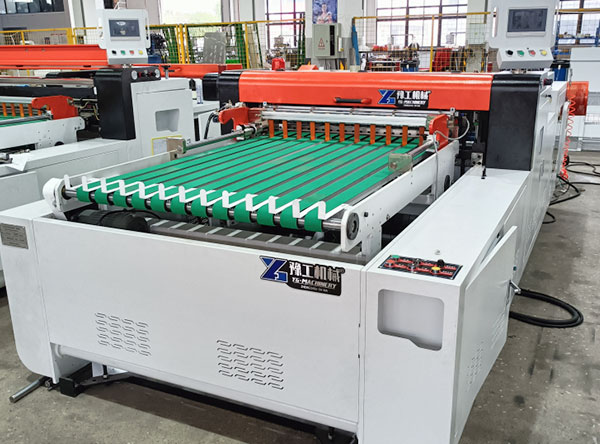

Paper Sheeting Machine

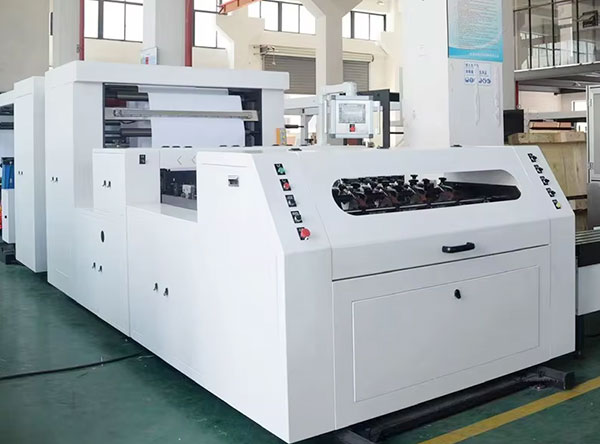

A4 Paper Cutting Machine

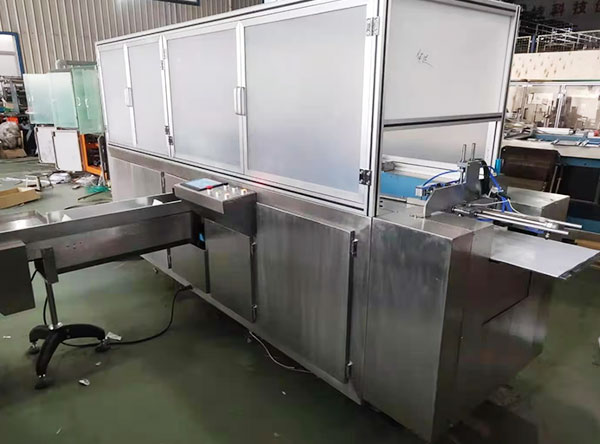

A4 Paper Packaging Machine
