Concrete Pump
YG Concrete Pump tackles clogs and boosts efficiency with a high-wear S-tube valve and alloy plates for smooth mortar/fine-concrete flow. Its smart dual-pump hydraulics and variable speed enable instant pressure switching, maintaining full 150m vertical pressure while working 30% faster. Featuring reliable triple hydraulic circuits and 1000m wireless remote control, it handles floor heating, tunnels, and high-rises across 10+ power models.
10+ Power Models
| Model | YG-20 | YG-30 | YG-40 | YG-50 | YG-60 |
| Motor Power | 22kw | 37kw/h | 45kw | 55kw | 90kw |
| Work Efficiency | 8-12m³/h | 13-15m³/h | 20-25m³/h | 30-35m³/h | 55-60m³/h |
| Work Pressure | 15mpa | 20mpa | 23mpa | 23mpa | 23mpa |
| Aggregate Size | 0-2cm | 0-3cm | 0-4cm | 0-4cm | 0-5cm |
| Vertical Conveying Distance | 40-50m | 20-60m | 30-130m | 30-150m | 30-150m |
| Horizontal Conveying Distance | 80-100m | 50-150m | 50-350m | 50-500m | 50-500m |
| Delivery Pipe Diameter | 80-100m | 80-125m | 80-125m | 80-125m | 125mm |
| Total Weight | 900kg | 1500-2000kg | 2200kg | 2200kg | 3500kg |
Why Choose Us
Triple pump Topwo System: The hydraulic circuit does not interfere with each other, and the system runs.
Anti-pump function: Helpful to eliminate pipe blockage in time and can be shut down for a short time.
Advanced s-pipe distribution valve: It can automatically compensate for the wear gap and has good sealing perform-ance.
Long-stroke Material Cylind-er: Extends the service life of the material cylinder and piston.
Automatic lubrication system: Ensure effective lubricat-ion during machine operation.
Remote controlfunctions: The operation is safer and more convenient. The remote control range can reach 100M.
Premium Accessory Support
Our heavy-duty accessories (45°/90° elbows, steel pipes, quick-connect clamps/adapters) deliver smooth flow and rapid setup. Tough materials, high-pressure resilience – pump faster, work smarter.
Multi-Scenario Application

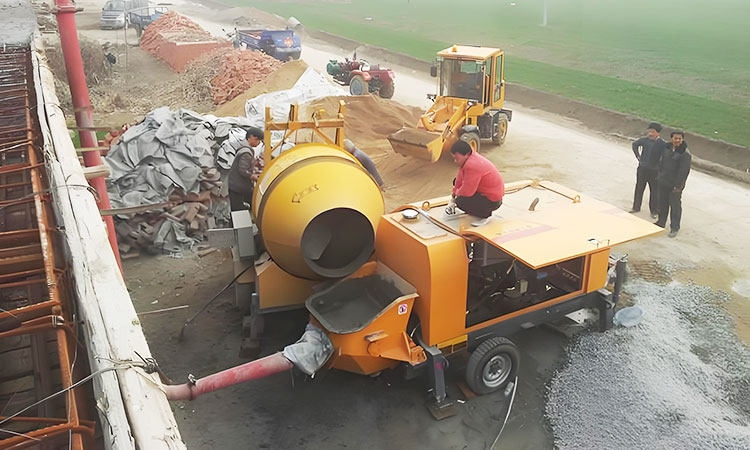

Yugong supplies mini, trailer & stationary concrete pumps for floor heating, foam cement, mortar/concrete conveying, and construction projects (high-rises, dams, tunnels, mines). Efficient large-area solutions.
