Product Advantages
Compact Design

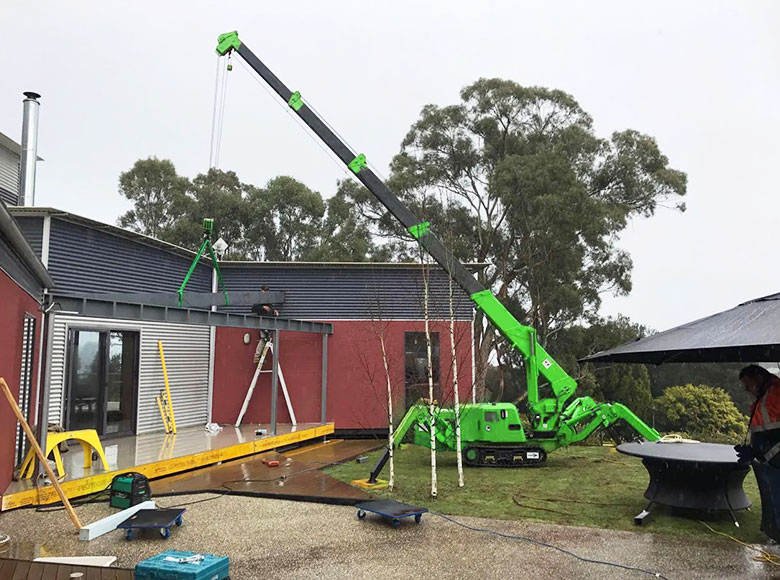

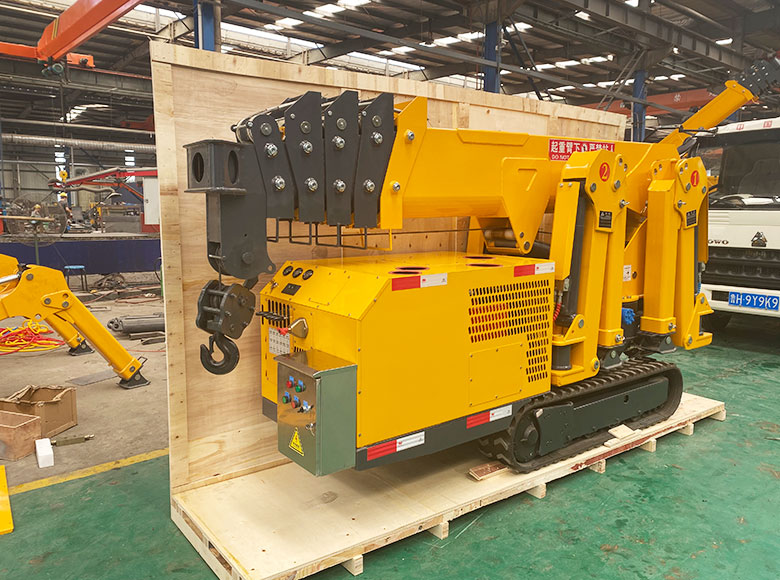

The smaller models feature a body width of just 800mm, allowing them to pass through standard single doors for indoor applications. Equipped with crawlers, YG spider cranes can easily access confined spaces where larger cranes or truck cranes cannot operate.
Lightweight Construction

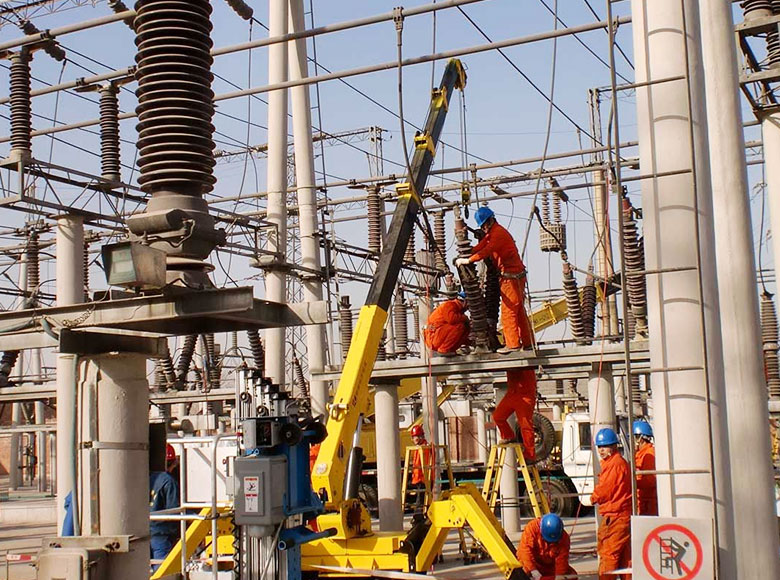

Designed to be compact and lightweight, these mini spider cranes can be transported to job sites using larger cranes or service elevators. They are ideal for various construction tasks, including material handling and curtain wall installations, whether inside buildings or on rooftops.
Stabilizing Outriggers

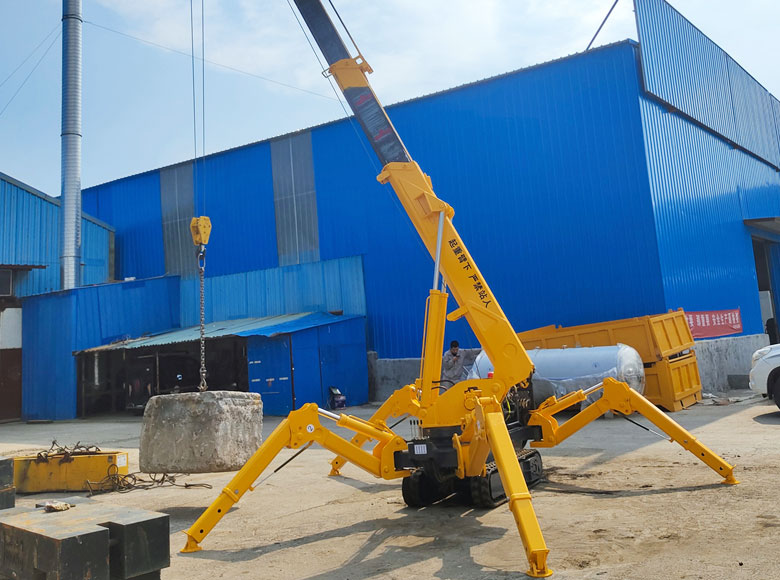

The four outriggers provide stability, enabling lifts of up to 8.0 tons. Even in challenging environments with obstacles or uneven surfaces, the outriggers ensure safe and stable lifting operations.
High Performance
With a lifting capacity of up to 8.0 tons, the YG series is versatile and suitable for a wide range of applications, including construction, civil engineering, and heavy load installations.
Technical Parameters
| Specification | 3T | 5T | 8T | |
| Maximum operating radius | 8.83m×0.2t | 14m×0.5t | 16.5m*0.5t | |
| Maximum ground liftr | 9.2mX0.7t | 16.8m | 18m | |
| Hoisting device | Hook rising speed | 0-8m/min (4 ropes） | 12m/min (4 ropes） | 12m/min (4 ropes） |
| Wire rope specifications | Φ8mm×45m | Φ11mm×80m | Φ11mm×80m | |
| Telesco picdevice | Telescopic arm form | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure | 5-section boom, U-shaped structure |
| Telescopic arm length/time | 3.1m-9.2m/20sec | 4.7m-16.5m/54sec | 4.7m-16.5m/54sec | |
| Heaving Device | Boom angle/time | 0-78°/13sec | 0-78°/13sec | 0-78°/13sec |
| Swivel devicer | Rotation angle/speed | 0-360°（continuous）/60sec | 0-360°（continuous）/38sec | 0-360°（continuous）/38sec |
| Overall size | 2.98*0.8*1.5m | 5*1.5*1.9m | 5*1.6*2.18m | |
| Deadweight（T） | 2700kg | 6200kg | 7200kg | |

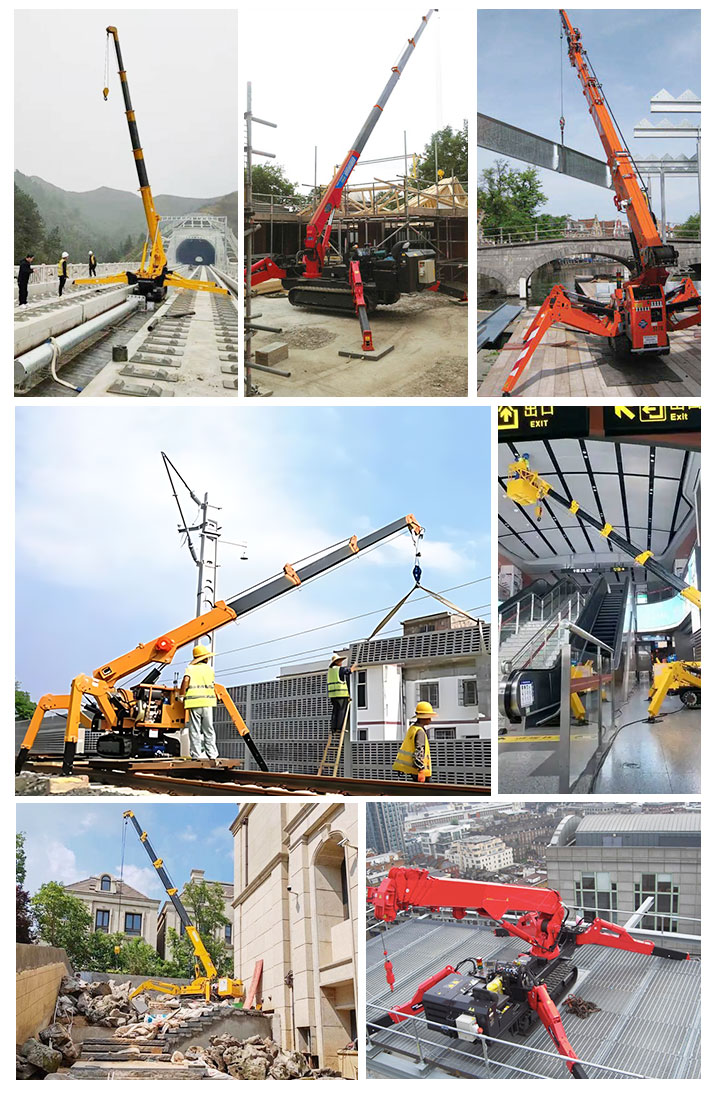

Customer Cases
YG Machinery’s spider crane production lines are trusted worldwide, serving clients in over 100 countries. From Chile to Malaysia, our machines deliver efficiency and reliability, empowering businesses globally. Join our success story today!
About Us
Founded in 2005, YG Machinery is a leading manufacturer of high-quality machinery, serving clients in over 100 countries, including Chile, Mexico, and Malaysia. Specializing in innovative and sustainable solutions, we provide durable, efficient machines tailored to diverse industries. With a customer-centric approach and a commitment to excellence, YG Machinery empowers businesses worldwide to achieve peak productivity. Trust us to deliver reliability and performance, every time.
